ALT’s Theseus series Explosion-Proof Lamp is engineered for hazardous locations it can be safely used in areas such as power plants, oil-natural gas drilling stations, refineries, mining facilities, etc. Integrated with the CREE XP-L chipset, the Theseus series Explosion-Proof Lamp can provide an estimated 75% energy savings while maintaining the same level of brightness as your standard HID and MH lights.

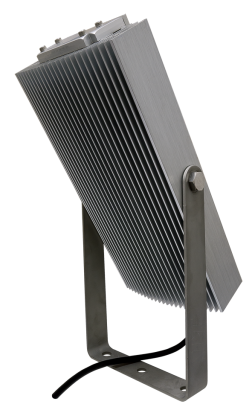

Using pure aluminum structure to bring the heat from chipboard to the air. Air convection and big area surface help the heat dissipation.
Key to LED lifespan
─Heat Dissipation Technology
Patented aluminum extrusion design and specialized thermal conductive further enhances thermal conductivity. The simple mechanism are made of excellent thermal conductivity material, with the double-sided natural convection, creating an extraordinary high-performance of heat dissipation performance in a limited volume, and extending its service life.

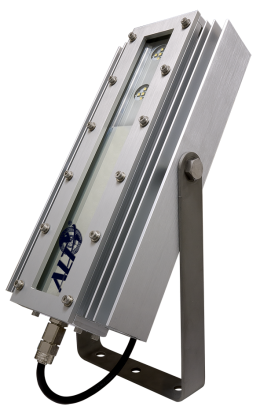

Flameproof enclosure
Flameproof enclosure
The Theseus series is designed to be compliant with European standard EN 60079-0、EN 60079-1, and obtained an explosion proof classification of Ex(d) IIC T5. It is designed to isolate flame from interior to exterior, effectively deterring potential combustions from occurring. More than 20 screws are used to firmly secure the cover, and the gaps are filled with high quality silicon to prevent deterioration.
Surface Treatment:Anodization
Suitable for Harsh environment
The housing of Theseus is made of anodized aluminum for both durability corrosion resistances; suitable for indoor/outdoor applications and under most harsh environments. Aluminum anodizing is the electrochemical process by which aluminum is converted into aluminum oxide on the surface. This coating is desirable in specific applications due to the following properties:
-Increased corrosion resistance -Increased durability / wear resistance
-Ability to be colored through dying -Electrical insulation
IP68 Waterproof
The highest protection level
Perfect replacement for traditional explosion proof lamp
Solutions Indications
