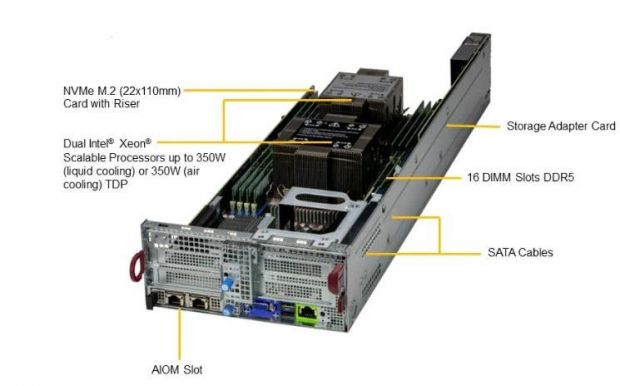

●CPU(per Node)
Dual Socket E (LGA 4677)
4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
●Memory Capacity(per Node)
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM
●Expansion Slots(per Node)
2 PCIe 5.0 x8 LP slot(s)
1 PCIe 5.0 x16 LP slot(s)
●I/O ports(per Node)
LAN
1 RJ45 Dedicated BMC LAN port
USB
2 USB 3.1 port(s) (2 rear)
Video
1 VGA port(s)
Others
2x M.2 for boot drive or caching
M.2 form factor: NVMe double-sided 22x110mm
●Drives
Hot-swap
12x 2.5" hot-swap NVMe/SATA drive bays (2x PCI-E 5.0 NVMe/SATA and 10x PCI-E 4.0 NVMe/SATA)
M.2
2 M.2 NVMe
●System Cooling
Fans
4x 16.5K RPM Heavy Duty 8cm Fan(s)
Liquid Cooling
Direct to Chip (D2C) Cold Plate (optional)
●Power Supply
2200W -48V DC Redundant Titanium Level power supplies
