Introduction

The steel cabinet series is manufactured according to ANSI/EIA RS-310 - C/D standards, compatible with the 19-inch international standard, and designed to support a load capacity of 2000KG. This product has passed UL and CE certifications, as well as ISO 9001/ISO 14001 international quality inspection certifications, ensuring that customers receive a full range of products with high-quality guarantees and excellent after-sales service.

Description
Specification

Product Features

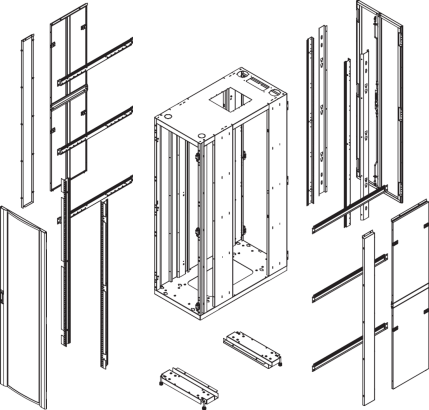

The overall cabinet structure is made of high-quality SPCC cold-rolled steel plates, with a modular design that reduces shipping volume, enhances the load-bearing capacity of the container, lowers costs, and can support loads of up to 2000KG or more.

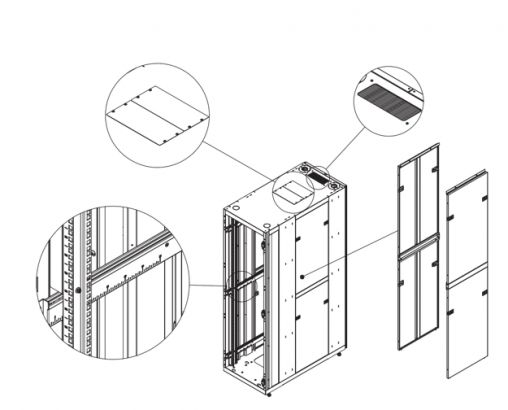

The side positioning column is printed with centimeter markings, making it easier and more flexible to adjust the spacing of equipment columns.
The top and bottom detachable side panels allow for more efficient and convenient removal, facilitating assembly during wiring.
The top cover panel features four fan holes, and the rear side brush provides convenient cable management.
The mesh door is designed with hexagonal ventilation holes, effectively lowering the temperature inside the cabinet, ensuring the protection of the equipment inside.

The door lock can be optionally upgraded to an electronic lock or standard lock.
Customization is available based on specific requirements.

1U=1.75inchs=44.45mm，standard unit=mm

model	high (U)	Deep outside	Deep inside	Outside width Ｗ1	W2	W3	Total height	Height inside
FD-60-42U	42U	1100	789	600	465	451	2000	1891.8
FD-60-42U	42U	1200	889	600	465	451	2000	1891.8
FD-80-42U	42U	1100	789	800	465	451	2000	1891.8
FD-80-42U	42U	1200	889	800	465	451	2000	1891.8
FD-60-48U	48U	1100	789	600	465	451	2267	2158.8
FD-60-48U	48U	1200	889	600	465	451	2267	2158.8
FD-80-48U	48U	1100	789	800	465	451	2267	2158.8
FD-80-48U	48U	1200	889	800	465	451	2267	2158.8
