Introduction

Absolutely waterproof, dustproof, corrosion-resistant, IP68 rated.

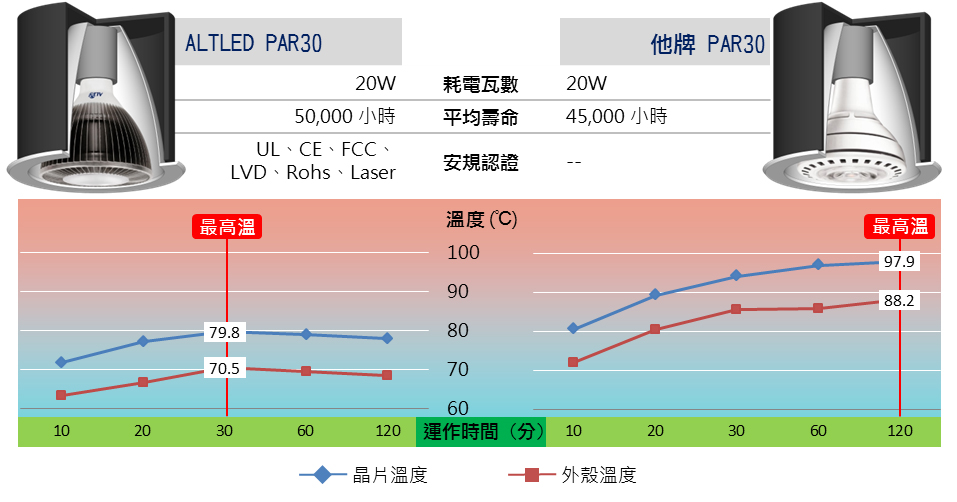

High density aluminum fins increase heat dissipation and assures long lifespan.
Elegant design, suitable for both indoors and outdoors.
Works properly in harsh environments: -65°C to +40°C

Safety Certification

ALT's Asteria series PAR30 bulb is designed with 58 pure aluminum fins for ideal heat dissipation. Our PAR30 (15W & 20W) can replace the traditional 75W and 90W PAR30s, saving a lot of energy. Simple and easy to install, also guaranteed by our engineers to last up to 50,000 hours. More importantly, Asteria series PAR30 IP68 has been certified by the most important safety certification organizations, such as UL, PSE, CE and FCC. These certifications ensure safety usage. Once again, ALT has raised the bar for high power LED lighting with its advanced core technology.

Solutions Indications

Working Voltage	100 - 277 V AC (Power Factor: ≥ 0.9), 24 V DC (Power Factor: 1)
Lifespan	50,000Hours
Warranty	3Years Limited
Weight	400 g(14.109 oz)

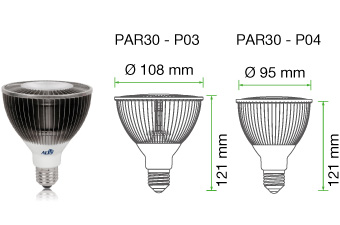

Width	P03: 108, P04: 95 mm
Height	P03: 121, P04: 121 mm
Operating Temp	-65°C ~ +40°C, -20°C ~ +40°C (Optional)

Download More Information：PAR30 (IP68)

CREE XT-E	Power Consumption	15 W
	Beam Angle	45°~135°
	True WhiteCRI 70	1600~920lm
	Natural WhiteCRI 80
	Warm White CRI 80
	Warm White (CK: 2200K) CRI 80
	Warm White CRI 90
CREE XT-E	Power Consumption	20 W
	Beam Angle	45°~135°
	True WhiteCRI 70	2000~1160lm
	Natural WhiteCRI 80
	Warm White CRI 80
	Warm White (CK: 2200K) CRI 80
	Warm White CRI 90
LUXEON Rebel ES	Power Consumption	15 W
	Beam Angle	30°~60°
	True WhiteCRI 80	1400~800lm
	Natural WhiteCRI 80
	Warm White CRI 80
	Warm White CRI 90
LUXEON Rebel ES	Power Consumption	20 W
	Beam Angle	80°~135°
	True WhiteCRI 80	1850~1090lm
	Natural WhiteCRI 80
	Warm White CRI 80
	Warm White CRI 90
EPISTAR	Power Consumption	15 W
	Beam Angle	80°~135°
	True WhiteCRI 98	680~520lm
	Warm White CRI 98	680~520lm
LUXEON Q	Power Consumption	15 W
	Beam Angle	100°~135°
	True WhiteCRI 80	1650~1200lm
	Natural WhiteCRI 80
	Warm White CRI 80
LUXEON Q	Power Consumption	20 W
	Beam Angle	100°~135°
	True WhiteCRI 80	2050~1500lm
	Natural WhiteCRI 80
	Warm White CRI 80
OSRAM Square	Power Consumption	15 W
	Beam Angle	45°~135°
	True WhiteCRI 70	1650~960lm
	Natural WhiteCRI 70
	Warm White CRI 80
	Warm White (CK: 2400K) CRI 80
	Warm White CRI 92
OSRAM Square	Power Consumption	20 W
	Beam Angle	45°~135°
	True WhiteCRI 70	2200~1300lm
	Natural WhiteCRI 70
	Warm White CRI 80
	黃金色光Warm White (CK: 2400K) CRI 80
	Warm White CRI 92
LUXEON Tx	Power Consumption	15 W
	Beam Angle	100°~135°
	True WhiteCRI 70	1650~1200lm
	Natural WhiteCRI 70
	Warm White CRI 80
LUXEON Tx	Power Consumption	20 W
	Beam Angle	100°~135°
	True WhiteCRI 70	2200~1600lm
	Natural WhiteCRI 70
	Warm White CRI 80
CREE XP-L	Power Consumption	15 W
	Beam Angle	38°~135°
	True WhiteCRI 65	1850~1500lm
	Natural WhiteCRI 75
	Warm White CRI 80
CREE XP-L	Power Consumption	20 W
	Beam Angle	38°~135°
	True WhiteCRI 65	2500~2050lm
	Natural WhiteCRI 75
	Warm White CRI 80

Certification

PAR30 - IP68 Dimmable(Internal Transformer)

Working Voltage	110V AC, 220V AC, 24V DC
Operating Temp	-65 ℃~+40 ℃
Lifespan	50,000Hours
Warranty	3Years Limited
Weight	400 g(14.11 oz)
Base	E26/24, E26/27
Power Consumption	15Watts,20Watts
Note	Compatible with all dimmers. One dimmer to multiple dimmable LEDs.

Download More Information：PAR30 (IP68) (Dimmable)

流明值產品資訊	PAR30投射燈(IP68).pdf
可調光規格產品資訊	PAR30投射燈(IP68)-可調光規格.pdf
