Introduction

Designed specifically for interior design, it is designers’ number 1 choice.
Available in several color temperatures including the special golden 2200K.
Cooperate with the top chipsets vendors, ALT integrate the latest chips and design into our products, and they have the best lumen, color and the lighting effect.
Variety of anodized colors on the heat sink and huge range of beam angles.

Safety Certification

Asteria MR16 series guarantees outstanding efficiency through its patented Glacier Edge™ heat sink design. ALT’s retrofit MR16 versions are ideal for general business and decorative lighting purposes, including boutique lighting, hotel lighting, and other commercial lighting applications. You can simply install them within the showcase of a boutique or store. Also, the Asteria MR16 series can easily reduce your energy consumption by up to 90%; it will enhance your business profitability and help the environment to flourish. The Asteria MR16 series will certainly be the product to create a more beautiful and efficient world.

Award

Solutions Indications

Download More Information：MR16-v3

CREE XM-L	Power Consumption	7 W
	Beam Angle	30°~120°
	True WhiteCRI 80	520~390lm
	Natural WhiteCRI 80
	Warm White CRI 80

Certification

MR16 Dimmable(Internal Transformer)

Working Voltage	110V AC, 220V AC
Operating Temp	-20 ℃~+40 ℃
Lifespan	30,000Hours
Warranty	3Years Limited
Base	E26/24, E26/27, GU10, E11, E12, E14, E17, B22D, BA15D, BA15S, EZ10
Power Consumption	7Watts
Note	Compatible with all dimmers. One dimmer to multiple dimmable LEDs.

Download More Information：MR16-v3

Certification

MR16 Dimmable(With ALT 8V Transformer)

Working Voltage	110V AC, 220V AC
Operating Temp	-20 ℃~+40 ℃
Lifespan	30,000Hours
Warranty	3Years Limited
Base	GX5.3, GU5.3, EZ10, E26/24, E26/27, GU10, E11, E12, E14, E17, B22D, BA15D, BA15S
Power Consumption	7Watts
Note	Compatible with all dimmers. One dimmer to multiple dimmable LEDs.

Download More Information：MR16-v3

Working Voltage	12V AC/DC
Operating Temp	-20 ℃~+40 ℃
Lifespan	30,000Hours
Warranty	3Years Limited
Optional	ACAdapter
Weight	25 g(0.88 oz)

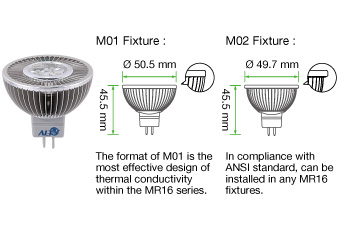

Width	M01: 50.5 / M02: 49.7 mm
Height	45.5 mm

流明值產品資訊	V3.pdf
可調光規格產品資訊	V3-可調光規格.pdf

This website uses cookies to collect necessary user browsing behavior so that we can provide you with a better browsing experience. By browsing this site, you agree to Online Privacy Statement

Working Voltage	100 - 240V AC
Operating Temp	-20 ℃~+40 ℃
Lifespan	30,000Hours
Warranty	3Years Limited
Weight	48 g(1.693 oz)

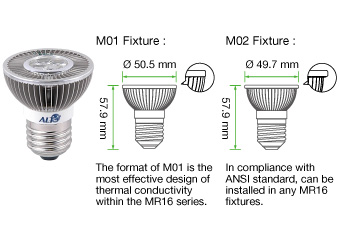

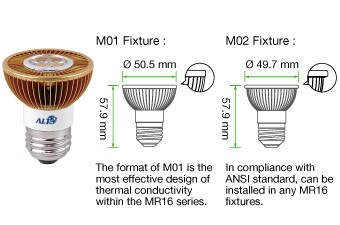

Width	M01: 50.5 / M02: 49.7 mm
Height	57.9 mm
Power Factor	≥ 0.9
